DC-DC Buck Converter
DC-DC Buck Converter
SCT2120QFTAR
Pre-release
2.8V-5.5V Vin 2A Synchronous Step Down Convertor
Download datasheet
Add to Cart
Collect
- Product Introduction
- Technical data
- Parameter comparison
Product Features
FEATURES：
- Qualified for Automotive Applications
- AEC-Q100 Qualified with the Following Results:
- Device Temperature Grade 1: -40°C to 125°C Ambient Operating Temperature Range
- Device HBM ESD Classification Level H2
- Device CDM ESD Classification Level C3B - Input Voltage Range: 2.8V-5.5V
- Up to 2A Peak Output Current
- Low Shutdown Current 0.05uA
- Low Quiescent operating Current: 38uA
- 0.6V ±1% Feedback Reference Voltage
- 1.5MHz Switching Frequency
- Integrated 80mΩ High-Side and 50mΩ Low-Side Power MOSFETs
- 100% Duty Cycle Mode
- Adjustable output voltage from 0.6 V to 5 V
- Active output discharge
- 1.2ms Internal Soft-start Time
- Power Good Indicator
- Integrated Protection Feature
- Cycle-by-cycle current limit
- Under-voltage Lockout
- HICCUP Over load Protection
- Thermal Shutdown Protection:160°C - QFN-8L 1.5mm*2mm Package
- Available in a Wettable Flank Package
DESCRIPTION：
The SCT2120Q is a monolithic, step-down switchmode converter with built-in internal power MOSFETs. The device achieves 2A of peak output current from a 2.8V to 5.5V input voltage range, with excellent load and line regulation. The output voltage can be regulated to as low as 0.6V.
Constant-on-time (COT) control provides fast transient response and eases loop stabilization. Fault protections include cycle-by-cycle current limiting and thermal shutdown.
The SCT2120Q operates in power saving mode, which maintains high efficiency during light load operation. It includes full protection features, such as over current protection, output under-voltage protection, input under-voltage lockout, and thermal shutdown.
The SCT2120Q requires a minimal number of external components and is available in a spacesaving QFN-8L1.5mm*2mm package.
Constant-on-time (COT) control provides fast transient response and eases loop stabilization. Fault protections include cycle-by-cycle current limiting and thermal shutdown.
The SCT2120Q operates in power saving mode, which maintains high efficiency during light load operation. It includes full protection features, such as over current protection, output under-voltage protection, input under-voltage lockout, and thermal shutdown.
The SCT2120Q requires a minimal number of external components and is available in a spacesaving QFN-8L1.5mm*2mm package.
APPLICATIONS：
- Automotive Infotainment
- Battery-Powered Devices
- Solid state driver

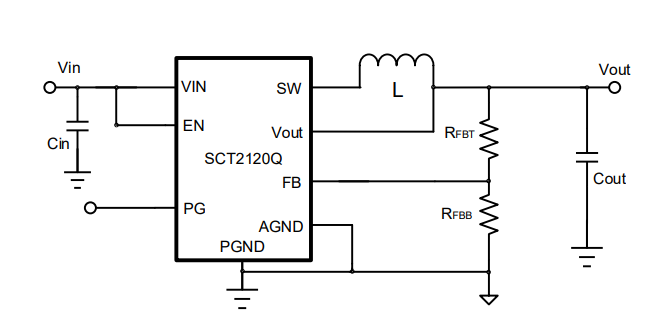

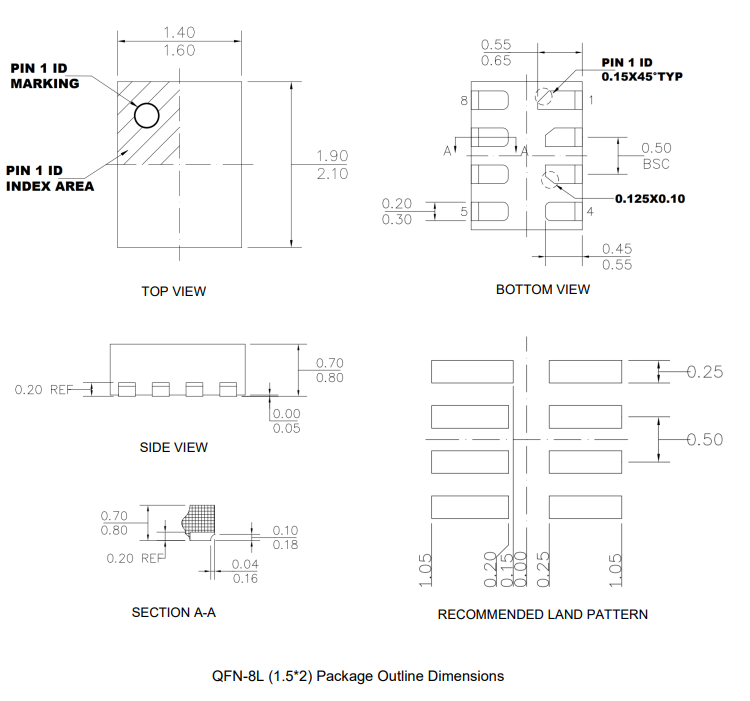

Package information
