Medium to High Voltage LDO
Medium to High Voltage LDO
SCT71403A05QMTER
Pre-release
3V-40V Vin, 300mA, Ultra-Low Quiescent Current LDO
Download datasheet
Add to Cart
Collect
- Product Introduction
- Technical data
- Parameter comparison
Product Features
FEATURES：
• Qualified for Automotive Applications
• AEC-Q100 Qualified with the Following Results:
- Device Temperature Grade 1: -40°C to 125°C
• Wide Input Range: 3V-40V
• With up to 45V Transient Input Voltage
• Maximum Output Current: 300mA
• Output Voltage: 0.65V~25V
• Output Voltage Accuracy:
➢ TJ= 25℃ : ±1%
➢ TJ= -40℃~ 125℃ : ±2%
• Ultra-Low Quiescent Current: 2.5μA
• Low Dropout Voltage ：
• 189mV at 150mA load current
• Support Output Capacitors Range:
➢ 3.3uF~220uF
➢ Low-ESR: 0.001Ω~ 5 Ω
• 1ms Internal Soft-start Time
• Current Limit Protection with VIN_HIGH Control
• Precision Enable Threshold for Programmable
Input Voltage Under-Voltage Lock Out Protection
(UVLO) Threshold and Hysteresis
• Over-Temperature Protection
• Available Package: EMSOP-8
DESCRIPTION：
DESCRIPTION：

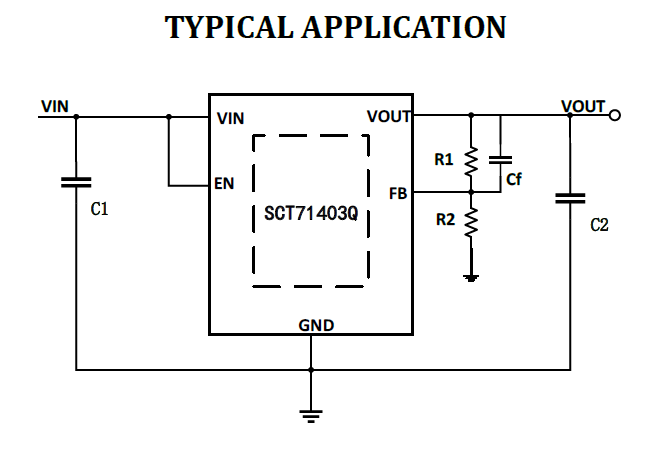

The SCT71403A05Q series products is a low-dropout linear regulator designed to operate with a wide inputvoltage range from 3V to 40V and 300mA output current with enable control feature. The SCT71403A05Q series products is stable with 3.3uF~220uF output capacitors, and 10uF ceramic capacitor is recommended.Only 2.5μA typical quiescent current at light load makes the SCT71403A05Q series products ideal choices for
portable devices with battery power supply and an optimal solution for powering microcontrollers (MCUs) and CAN/LIN transceivers in always-on systems. The SCT71403A05Q series products integrated shortcircuit and overcurrent protection with VIN_HIGH Control feature, which makes the device more reliable during transient high-load current faults or shorting events. The SCT71403A05Q series products provide adjustable output version which can adjust the output voltage from 0.65V to 25V. The SCT7140Q series products is available in EMSOP-8 packages, for other package options, please contact SCT sales.
APPLICATIONS：
APPLICATIONS：
• Automotive Head Units
• Headlights
• Body Control Modules
• Inverter and Motor Controls

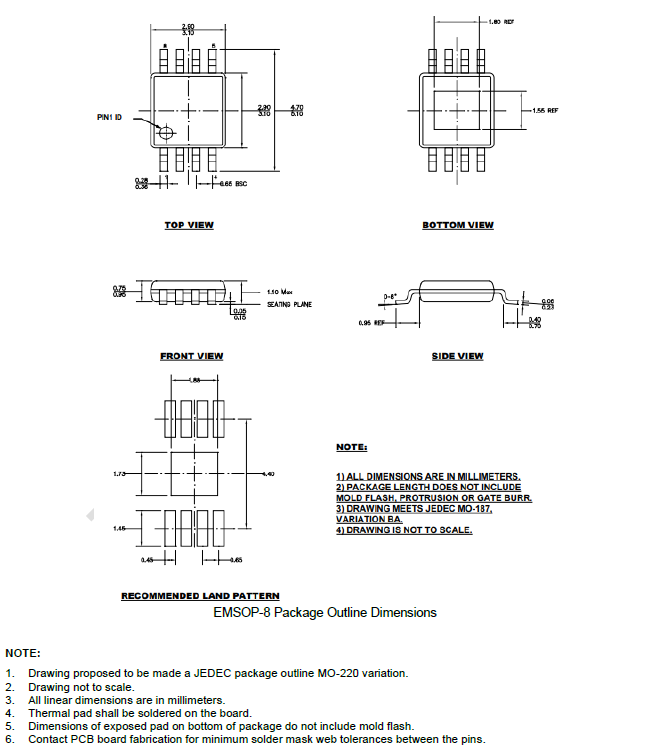

Package information
Technical data
| Title | Time | Download |
|---|---|---|
| SCT71403A05Q Datasheet Rev 1.2 | 2026-07-14 |
 Download
|
